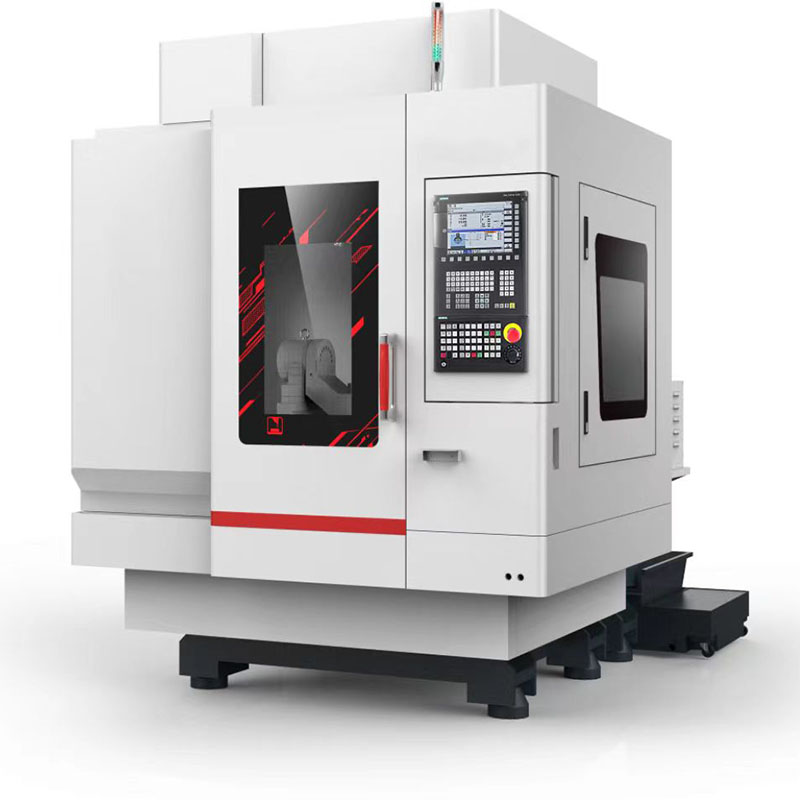

TL-650-5AXIS (Copy) (Copy) (Copy) (Copy) (Copy)
Compact VMC powerhouse: HT300 cast bed w/delta column. Taiwan linear guides + ball screws deliver ±0.003mm precision. 20k-RPM BT30 spindle + 1.5s Dejie 21-tool changer. Full-seal guards & premium lubrication ensure longevity.
Techical Data
| Model | VMC-L850 | VMC-L855A | VMC-L1160 | VMC-L1270 | VMC-L1580 |
| X-Axis Travel | 800 mm | 800 mm | 1100 mm | 1200 mm | 1500 mm |
| Y-Axis Travel | 500 mm | 550 mm | 600 mm | 700 mm | 800 mm |
| Z-Axis Travel | 500 mm | 550 mm | 600 mm | 600 mm | 700 mm |
| Worktable Size | 500*1000 mm | 550*1000 mm | 600*1300 mm | 700*1360 mm | 800*1700 mm |
| Worktable Load Capacity | 800 kg | 850 kg | 1000 kg | 1300 kg | 1500 kg |
| From Spindle Nose To Worktable Face | 110~610 mm | 110~660 mm | 70~670 mm | 87~687 mm | 130~830 mm |
| From Spindle Center To Column Guide Rail | 560 mm | 600 mm | 655 mm | 785 mm | 810 mm |
| T-Slot | 5-18*90 | 5-18*90 | 5-18*100 | 5-18*122 | 5-22*135 |
| Bed Pad Height | 50 mm | 50 mm | 50 mm | 80 mm | 80 mm |
| Spindle | |||||
| Spindle Taper | BT40 / Φ150 | BT40 / Φ150 | BT40 / Φ150 | BT50 / Φ155 | BT50 / Φ155 |
| Spindle Speed | 10000 r/min | 10000 r/min | 10000 r/min | 8000 r/min | 8000 r/min |
| Spindle Motor | 7.5 kw | 11 kw | 11 kw | 15~18.5 kw | 15~18.5 kw |
| Three Axis | |||||
| Ball Screw | 4012/4012/4012 | 4012/4012/4012 | 4012/4012/4012 | 5010/5010/5010 | 6310/6310/5010 |
| Rapid Traverse | 24 / 24 / 18 m/min | 32 / 32 / 16 m/min | 24 / 24 / 18 m/min | 24 / 24 / 18 m/min | 12 / 12 / 12 m/min |
| X/Y Ball Guide Rail | 35 / 45 | RGH35HA RGW45CC | KUVE45 KUVE55 | KUVE55 KUVE45 | KUVE55 KUVE45 |
| Coupling | BK3-150 | BK3-150 | BK3-150 | BK3-200 | BK3-200 |
| Motor Connection Method | Direct Drive | Direct Drive | Direct Drive | Direct Drive | Direct Drive |
| Motor Power | 3 / 3 / 3 kw | 3 / 3 / 3 kw | 3 / 3 / 3 kw | 3.5 / 4.5 / 4.5 kw | 4.5 / 4.5 / 4.5 kw |
| Torque | 10 / 12 / 12 N.m | 10 / 16 / 20 N.m | 12 / 16 / 16 N.m | 16 / 16 / 16 N.m | 26 / 26 / 26 N.m |
| Demension | 2750*2700*2750 | 2750*2700*2750 | 3150*3050*2850 | 3850*2850*2950 | 4300*3300*3350 |
| Weight | 5.5 t | 5.5 t | 7.5 t | 9 t | 12 t |
Features
While siblings handle bulkier tasks, the TC640 thrives in the microcosmos – where 0.5mm end mills dance at 20,000-24,000 RPM to craft:
- Medical Miracles: 200+ titanium bone screws/hour, Ra 0.2μm finishes (no polishing)
- Electronics Euphoria: 5G heatsinks with 0.015mm slot tolerances – 37% faster than “high-speed” rivals
- Automotive Agility: EV battery plates swapped from aluminum to copper in 8s (tool #23 ↔ #17)
Why Machinists Cheat on Their Old Machines
- Speed Without Tears: 0.8s tool swaps (tested 2.1M cycles) + collision sensors that save $3k/month in broken tools
- Space Whisperer: 2.1m² footprint – smaller than a Tesla Model 3, outputs like a Hummer
- Material Polyglot: From aerogel molds to zirconium implants, it speaks 50+ alloys fluently
Optional
Application
Built for precision turning of brass, bronze, aluminum, steel, stainless steel, and rigid plastics — handling bar stock up to Ø51mm and single parts up to Ø300mm.
With its rigid cast-iron base, CNC-controlled hydraulic tailstock, 12-station power turret, and optional upper/lower milling heads, the ST-52YT easily handles:
Long-shaft turning
High-rigidity cutting
Multi-process machining (milling, drilling, tapping)
Complex parts in hard materials with smooth Ra surfaces
A true all-rounder — ready for medical, electronics, and automotive production.
Case Study
Configuration: ST-52YT installs the 3-Jaw Hydraulic Chuck, Power turret.
Workpiece: Connection shaft, 45 steel.
Machining Process: Turning, Facing, Drilling, Milling.
Turning Duration: within 380 seconds of one-time processing
